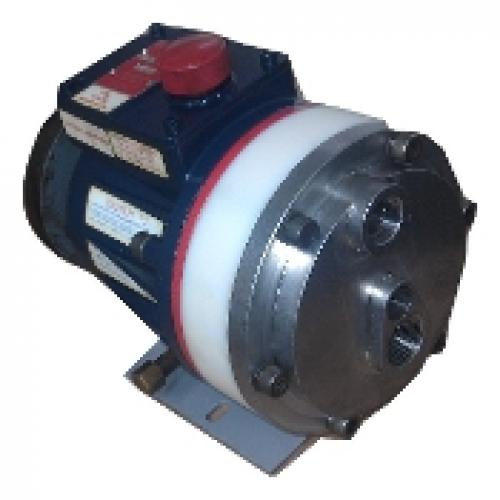

Wanner New D10 Hydracell Pump With Poly Valve Plates & Stainless Steel Manifold P/N: GGD10C1100005

Wanner New D10 Hydracell Pump With Poly Valve Plates & Stainless Steel Manifold

Pulley sold separately. BK57H Pulley

Hub Bushing Sold Separately. HX875 Bushing

• Seal-less Design: No mechanical seals, packing, or cups to leak, wear, or replace, reducing maintenance and downtime.
• Abrasive Handling: Features horizontal disk check valves, allowing the pump to handle fluids with abrasive particulates up to 500 microns.
• Run-Dry Capability: Can run dry indefinitely without damage in case of accident or operator error.
• High Efficiency: Offers high volumetric and energy efficiencies.
• Compact Design: Simple and compact design, reducing initial investment and lowering maintenance costs.
• Bi-directional Shaft Rotation: Shaft rotation can be reversed for repairs and operation.
• Tapered Roller Bearings: Equipped with tapered roller bearings.
• Oil Capacity: 1.1 US quarts (1.05 liters) of 10W30 Standard-Duty Oil.
• Maximum Inlet Pressure: 250 PSI (17 bar).
• Max. Discharge Pressure: Up to 350 psig (24 barg) (for non-metallic head, verify with Wanner for the exact poly material)
• Max. Operating Temperature: 140°F (60°C) (for non-metallic heads)
• Ports: 1" NPT Inlet, 3/4" NPT Discharge
